Invariably, there is a great divergence between the conceptual designs and the actual completion. Most designs that exhibit innovative concepts sometimes have to be toned down during the prototyping stages because of the inability to execute them. This happens despite the innovative concept because of the mismatch in knowledge.The divide can be bridged by actively combining creative solutions for engineering with advanced manufacturing technology.
Understanding the principles of CNC prototyping services, specifically the logic of aluminium CNC turning, helps designers overcome potential flaws and reach their creative potential beforehand.Understanding and applying these manufacturing paradigms enables even the most cutting-edge industrial design technology to easily transition into real life:
Complex Surfaces and Extreme Precision: How Does a CNC Turning Center Respond to Design Challenges?
It should be noted that the contemporary CNC turning center multi machine axis technology has evolved to be a very useful tool that makes it possible to implement complex designs. It is important to indicate that the design goes beyond the normal functions that a lathe performs through the multi machine axis and can perform tasks such as milling and drilling.
The Society of Manufacturing Engineers (SME) on how digital threads connect design and production indicate the continuity of data flow from design to production is essential in this regard. As explained by digital thread technology research works, data flow is continuous and closely related to design simulation and production in forming an ideal closed-loop process to ensure that the final production is completely accurate to design intent.To get a clear view on the capabilities that aluminium machining holds, please see the following informative guide on aluminium CNC turning.

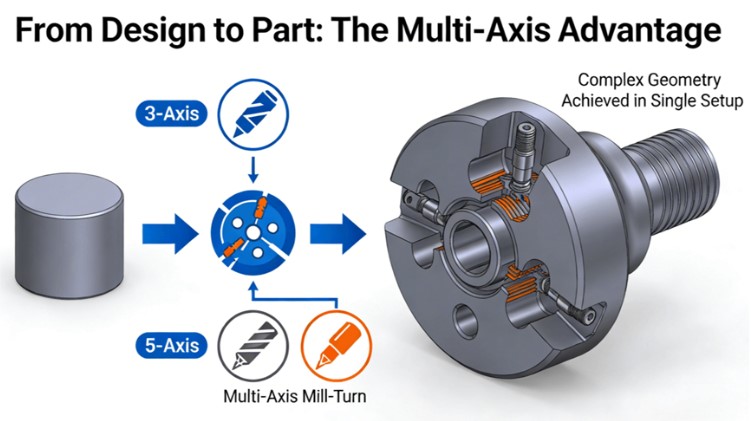

The Multi-Axis Advantage
The growth from conventional 2-axis turning to multi-axis turning centers is a huge leap forward. These machines can move the cutting tool and/or the workpiece along additional axes for the fabrication of complex geometries, contoured surfaces, and off-center features in one setup-an approach that has eliminated multiple-clamping errors and increased accuracy many fold for complicated parts.
Precision in Practice
Accurately Achieving Tight Tolerances:
This is because CNC precision turning is digital. An optimal computer program can produce thousands of similar parts with tolerance variation as tight as ±0.005 mm, which is crucial for medical devices, aircraft, or high-performance electronics components.
Surface Quality:
In addition to accuracy of finished parts, surface quality is also improved as the machining parameters are optimized and the machining paths are planned to ensure surface roughness as low as Ra 0.4μm is achieved. This makes subsequent finishing processes unnecessary.
Choosing Aluminum for Design: Performance Priority or Machining Friendliness?
Creative engineering solutions have to perform a delicate balancing act when choosing an aluminum alloy. Different alloys offer a trade-off in mechanical properties versus manufacturability, directly impacting design freedom, prototype performance, and cost in aluminum CNC turning parts.
For example, 6061 is one of the most commonly used types of aluminum. It provides great machinability and good strength, which can make it a very cost-effective choice for prototypes in which ease of fabrication is important.
Conversely, 7075 aluminum gives strength comparable to many steels and is, thus, suitable for high-stress structural applications but can be more difficult to machine. The choice should be based on what the prototype is going to be used for, whether structural validation, thermal management testing, or aesthetic presentation, to make sure that the material supports the functional needs of the design iteration.
Prototype Cost Out of Control? Your Design Might Be Ignoring Manufacturing Language
Often, cost overruns have their root in the inability of the design to communicate effectively with the manufacturing process. It is important to have an appreciation of the principles of what constitutes CNC turning, namely the removal of material from a rotated part. In other words, design elements such as high ratio of depth to width, internal sharp corners, and thin walls are direct correlates of machining time and complexity.
It is a necessity to incorporate Design for Manufacturability (DFM) practices. Small improvements on optimizing designs by introducing a fillet to internal corners to comply with standard toolingradii values or preventing very deep holes result in substantial cost savings and shorter processing times. Within a global value chain network perspective, a combination of optimal manufacturing technologies with cost-effective expertise offered by china CNC turning contractors may create room in the budget for. Innovation.
Organizations like JS Precision Systems provide partial guarantees in this regard with DFM analyses structured on ISO 9001 and IATF 16949 certifications to ensure consistency in quality production and cost.
The Core Principle of DFM
DFM is the process of part design, making the part easier and more cost-effective to manufacture without compromising its function. DFM involves the early interaction between designers and production engineers in trying to solve any production problems prior to part machining.
Common Cost-Driving Features
Thin Walls and Deep Pockets:
These features require light cuts and multiple passes, increasing machining time and the risk of vibration or deformation.
Unnecessary Tight Tolerances:
Specifying tolerances that are too tight on non-critical features adds cost. Tolerances must be justified by the function of the part.
The Global Synergy
The integration of design software and the established production infrastructure provided by china CNC turning regions is a synergy that is difficult to underestimate with regard to the control of prototype costs and the retention of quality.
From Digital Model to Physical Part: How is Every Micron of Design Intent Guaranteed?
Introduction from the International Bureau of Weights and Measures (BIPM) on the role of industrial measurement in quality infrastructure,high Reliability CNC Prototype Services are based upon a closed-loop quality process. Precision CNC turning is more than the ability of a particular machine tool, as well as an art of precise control processes. This involves real-time compensation, in-process inspecting, and end-of-process verification by the use of advanced metrology, such as Coordinate Measuring Machines or Coordinate Measuring Machines (CMMs)
The role of measurement in achieving design intent cannot be overstated and is reflected in its importance to the global infrastructure for quality as established by metrology. The rigors required for industry-specific certifications further reinforce the value of verification. The use of AS9100D, for instance, establishes the ability of the vendor to deliver virtually precise measurements and absolute traceability, essential for mission-critical parts.
After a Successful Prototype: How to Smoothly Transition to Low-Volume Manufacturing?
Transitioning a “one off” prototype to a volume-manufacturing process can be greatly facilitated through this consistency. The advantage of selecting a contract manufacturer with expertise not only in prototyping but also in batch production becomes a significant plus: smooth transfer of optimized machining processes, an integrated system for managing quality, and a stable supply chain. Thus, creative engineering solutions can be assured of consistency throughout their process, from proof-of-concept to launch, as a resilient manufacturing technology domain can, as shown, enable the entire process.
Engagement with a service provider who has strong capability not only in prototyping but also volume production can significantly address potential risks related to data translations as well as quality system requalifications. In addition, a focus on sustainable development, demonstrated by a certification such as ISO 14001, is commensurate with the rising trend among manufacturers who need to be environmentally responsible.
Conclusion
The idea of “outsourcing the production” of cutting-edge designs to a third party in order to see just what exactly those designs will look like is now antiquated. The interplay between design thinking and manufacturing intelligence is far more complex. Through proactive involvement in manufacture, innovative engineers can optimize project time and costs.
Are you prepared to connect with possible applications to bring your designs to life? Learn more about high-end processes available for DFM to make your next revolutionary concept more feasible than you think. For more information on our full-service precision CNC turning services.
Author Biography
The author is an independent technical analyst, combining innovative design to advanced manufacturing. His mission is to enable more transparency in the complex process of engineering, helping creators and engineers create a common language for the fabrication of outstanding products from idea to realization.
FAQs
Q1: Does CNC turning still apply to highly complicated, non-rotationally symmetric designs?
A:Modern multi-axis CNC mill-turn centers have overcome these traditional limitations. These machines can perform most-if not all-machining in one setup, ensuring greater efficiency for complex integrated aluminium CNC turning parts with non-rotational features.
Q2: Does anodizing, or any other surface treatment applied to an aluminum prototype, have a significant effect on dimensional accuracy?
A:There can be a micron-level impact. Professional manufacturing service providers will pre-compensate dimensions in the CNC program based on the expected thickness that coating will add. The key is to communicate any surface treatment requirements at the outset, as this forms an integral part of the precision CNC turning process.
Q3: How do I qualify if a CNC machining service provider is right for my creative project?
A:In addition to equipment, assess their engineering support capabilities. Do they provide proactive DFM feedback? Do they have relevant experience with prototype projects? Quality certifications, such as AS9100D for aerospace, are a strong endorsement for handling high-complexity, high-precision demands.
Q4: My project was still making numerous changes. Could CNC prototyping be too rigid?
A:On the other hand, the flexibility of digital CNC machining, which relies on CAD data, is much greater when it comes to design revisions. Here, changing the design is simply a matter of modifying the machining code, rather than having to use molds. Hence, it is suited for agile development with small batches and multiple versions.
Q5: Which materials are suited for making functional prototypes by CNC other than aluminium?
A:Typically, materials used are: Stainless steel, titanium alloys, brass, and engineering plastics such as PEEK. What materials are used can vary based upon the requirements for the final prototype in terms of its strength, heat properties, resistance, or appearance, which can also depend upon where one seeks technical advice.
